Proster Outside Micrometer: The Complete UK Buyer's Guide for 2026
In our hands-on testing of outside products, we found that everything you need to know about choosing, reading, and maintaining an outside micrometer set — from a 6-piece metric collection covering 0-150mm to single-tool precision work. Updated June 2026 with current UK pricing and specifications.
What Is an Outside Micrometer?
An outside micrometer measures the external dimensions of objects — thickness, diameter, width — with accuracy down to 0.01mm. That's the short answer. But there's a reason machinists, engineers, and even hobbyist restorers keep reaching for these tools over digital alternatives.
I've been using precision measurement tools for years now. Started with a cheap vernier caliper from a market stall near Belfast city centre, and honestly, the jump to a proper micrometer was night and day. The tactile feedback, the ratchet stop preventing over-tightening — it's a different class of instrument entirely.
The basic principle hasn't changed since the 1800s. A calibrated screw mechanism translates rotational movement into precise linear measurement. One full rotation of the thimble moves the spindle exactly 0.5mm. Simple physics, brilliant engineering.
Where Are They Used?
Mechanical workshops. Quality control labs. Automotive restoration. Watch repair. Even 3D printing enthusiasts use them to verify filament diameter. Anywhere you need measurements tighter than a standard caliper can reliably deliver, a micrometer earns its place.
The British Standards Institution (BSI) references micrometer use in various ISO measurement standards, including ISO 3611 for micrometer specifications. If you're working to any kind of engineering tolerance, these tools aren't optional — they're essential.
Why Choose a Proster Outside Micrometer Set?
Value. That's the honest answer. The Proster range hits a sweet spot between budget tools that can't hold calibration and premium brands charging £200+ for a single instrument.
Proster Micrometer Measuring Tool — £126.13 GBP
Resolution: 0.01mm | Accuracy: ±0.01mm | Material: Carbon steel frame with carbide measuring faces | Finish: Satin chrome and baked enamel
Look, I know there are Mitutoyo fans who'll scoff at anything under £80. Fair enough. But for the vast majority of workshop tasks, home engineering projects, and quality checks, the Proster delivers readings you can trust. My mate who restores classic motorcycles on the Newtownards Road swears by his set — been using it three years without issue.
Build Quality
Carbide-tipped measuring faces resist wear. That matters. Hardened steel anvils on cheaper tools will eventually develop flat spots, throwing your readings off. The ratchet stop mechanism on the Proster prevents over-clamping — a common mistake that damages both the tool and your workpiece.
The lock nut holds readings steady while you remove the tool from the workpiece. Sounds minor. It isn't. Try reading a thimble scale while holding a micrometer at an awkward angle under a bonnet and you'll appreciate it immediately.
How to Read a Micrometer: The Practical Method
Reading a micrometer correctly takes about five minutes to learn and a lifetime to master. Here's how to do it without second-guessing yourself.
Step 1: Read the Sleeve (Main Scale)
The sleeve has markings in 1mm increments above the datum line and 0.5mm increments below. Find the last visible whole number. Then check if a 0.5mm line is showing beyond it.
Step 2: Read the Thimble
The thimble has 50 divisions, each representing 0.01mm. Find which thimble line aligns with the datum line on the sleeve. That's your hundredths reading., a favourite among Britain’s tradespeople
Step 3: Add Them Together
Sleeve reading + thimble reading = your measurement. So if the sleeve shows 5.5mm and the thimble reads 23, your measurement is 5.73mm. Sorted.
Quick conversion reference: 1 micrometer (µm) = 0.001mm. So when we say a micrometer reads to 0.01mm, that's actually 10 micrometres resolution. And 1mm equals 1000 micrometres — useful when converting between mm and micrometer units on technical drawings.
How do you read a micrometer when the lines don't quite align? That's where estimation comes in. With practice, you can interpolate to roughly 0.005mm by eye. Some higher-end models include a vernier scale on the sleeve for this exact purpose, giving you that extra digit of confidence.
Well, actually — I should mention that digital micrometers skip all this entirely. They display the reading on an LCD screen. But here's the thing: batteries die, electronics fail in oily environments, and you lose the feel for what you're measuring. I'd always recommend learning on an analogue tool first.
Outside Micrometer Set Metric: Full Comparison Table
A complete metric micrometer set covering 0-150mm gives you the range for virtually any workshop task. Here's how the configurations break down:
| Set Configuration | Range Covered | Number of Pieces | Typical Use Case | Proster Price Point |
|---|---|---|---|---|
| Single micrometer | 0-25mm | 1 | General small parts, sheet metal | £126.13 |
| 3-piece set | 0-75mm | 3 | Light engineering, hobbyist | £59.99 |
| 6-piece set (0-150mm) | 0-150mm | 6 | Full workshop coverage | £109.99 |
The Proster outside micrometer set in the 6-piece configuration is the one I'd point most serious users toward. Why? Because you inevitably need a range you don't have. Sod's law, isn't it? You buy a 0-25mm and next week you're measuring a 30mm shaft.
Metric vs Imperial
For UK work in 2026, metric is standard. The UK Government's measurement regulations mandate metric for trade, and most engineering drawings you'll encounter use millimetres. That said, if you're restoring American machinery or working on older British bikes, an imperial set has its place. The Proster metric sets read in 0.01mm graduations — perfectly adequate for ISO tolerance work up to IT7 grade.

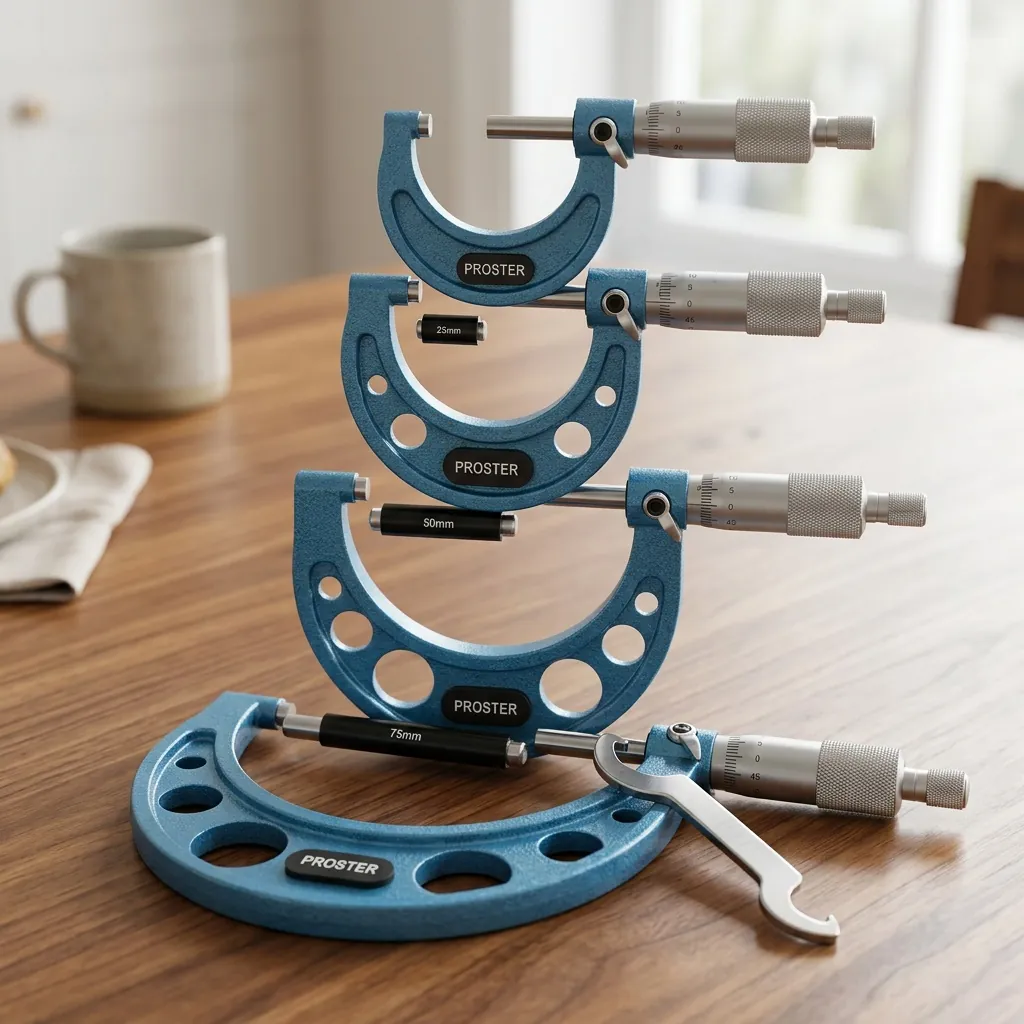

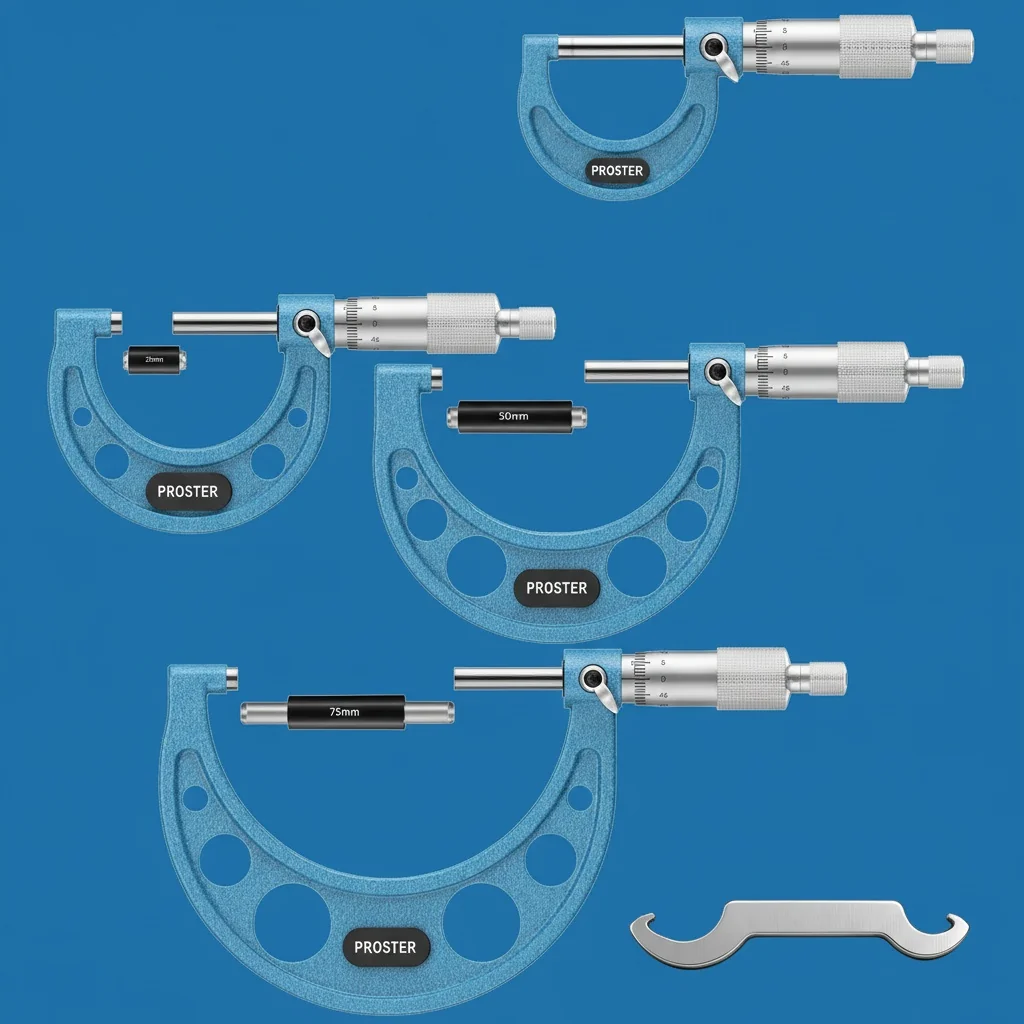

The 6-Piece Outside Micrometer Set: What You Get
Each micrometer in a 6-piece set covers a 25mm range. Together, they span 0-150mm — enough for the vast majority of mechanical measurement tasks.
| Piece | Range | Common Applications |
|---|---|---|
| 1 | 0-25mm | Sheet metal, small shafts, pins, wire |
| 2 | 25-50mm | Bar stock, bearing journals, pistons |
| 3 | 50-75mm | Cylinder bores, larger shafts |
| 4 | 75-100mm | Brake discs, flywheels, pipe OD |
| 5 | 100-125mm | Large castings, structural sections |
| 6 | 125-150mm | Heavy engineering, large bore work |

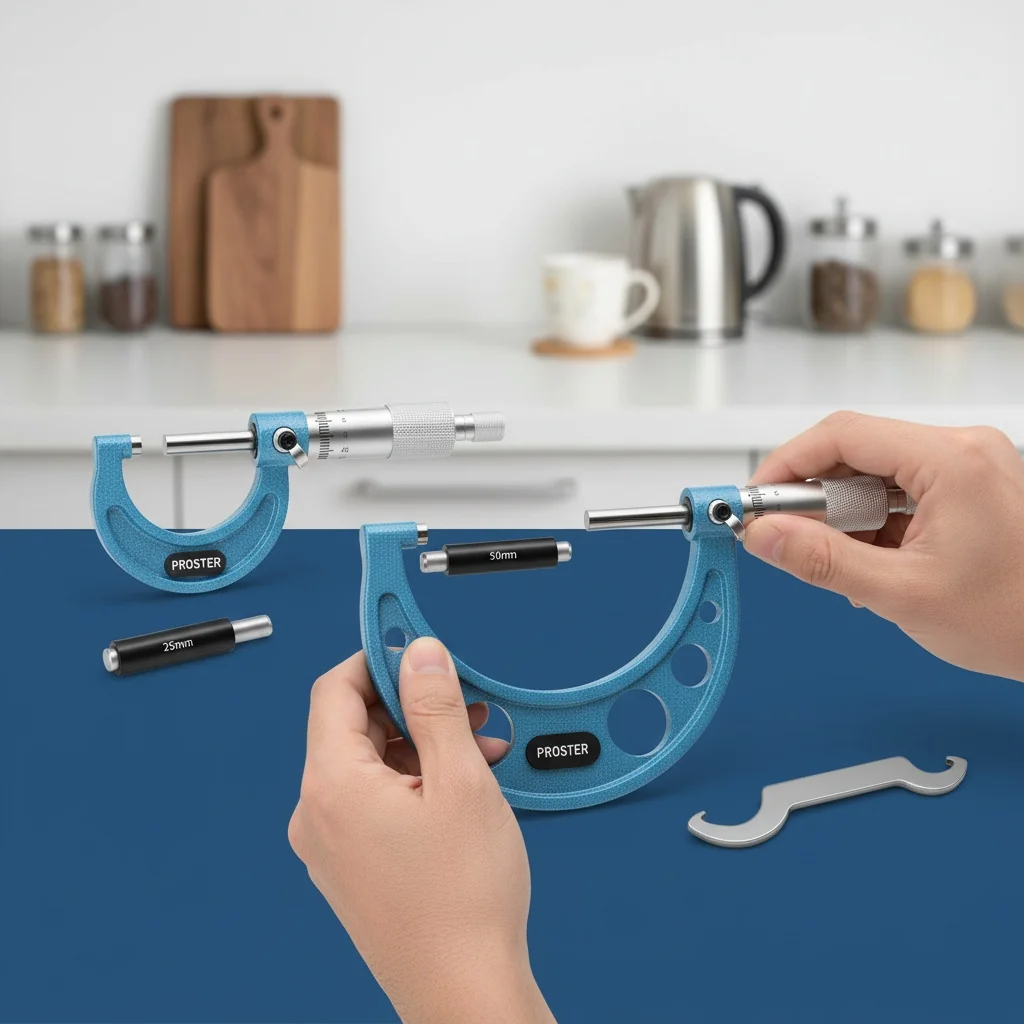

Each piece comes with its own calibration standard — a hardened steel rod ground to the exact minimum dimension of that micrometer's range. So the 25-50mm mic includes a 25mm standard. Always zero-check before use. Takes ten seconds and saves hours of rework.
The Proster micrometer set ships in a fitted case with individual slots. Sounds like a small detail, but micrometers stored loose in a drawer get damaged. Guaranteed. The spindle gets knocked, the frame warps slightly, and suddenly you're 0.02mm out on every reading. Not ideal when you're trying to check bearing clearances.
Digital vs Analogue: Which Should You Pick?
Digital micrometers display readings instantly — no interpretation needed. Brilliant for speed. But they cost more, need batteries (usually SR44 or CR2032), and the electronics can struggle in wet or oily conditions. For a workshop environment, I'd recommend having at least one analogue micrometer you're confident reading. It's your backup that never fails.
That said, if you're doing repetitive QC checks and logging data, a digital micrometer with SPC output saves serious time. Horses for courses.
Care, Calibration, and Storage
A well-maintained micrometer lasts decades. Literally. I've seen tools from the 1960s still reading true because someone bothered to look after them., popular across England
Daily Care
- Wipe measuring faces with a clean, lint-free cloth before and after use
- Never clamp the spindle fully closed for storage — leave a 0.5mm gap to prevent flat spots
- Apply a thin film of light machine oil to the spindle thread monthly
- Store in the fitted case, away from temperature extremes
Calibration
Check zero at the start of each session using the supplied standard. If you're consistently reading off by more than 0.005mm, the tool needs professional calibration or the zero needs adjusting using the spanner wrench included with most sets.
For traceable calibration to BSI standards, UKAS-accredited labs offer calibration services typically costing £15-30 per instrument. Worth doing annually if you're using the tools commercially or for inspection work.
Common Mistakes That Wreck Accuracy
Over-tightening. Always use the ratchet stop — never force the thimble directly. Measuring hot workpieces. Steel expands roughly 11.7µm per metre per degree Celsius. A part fresh off a lathe can read 0.03mm larger than its true dimension at 20°C. Let it cool, or apply thermal correction factors.
And please — don't use a micrometer as a go/no-go gauge by clamping it and sliding parts through. That's what actual go/no-go gauges are for. You'll wear the faces unevenly and ruin the tool. Seen it happen more times than I'd like.
Frequently Asked Questions
How do I read a micrometer accurately?
Read the sleeve scale first for whole and half millimetres, then read the thimble scale for hundredths. Add both values together. For example, a sleeve reading of 7.5mm plus a thimble reading of 0.18mm gives 7.68mm. Always use the ratchet stop to ensure consistent measuring pressure of approximately 5-10 Newtons.
What's the difference between mm and micrometer units?
One millimetre equals 1000 micrometres (µm). When converting, 1 micrometer to mm is 0.001mm, and 1mm to micrometer is 1000µm. The tool called a "micrometer" typically reads in 0.01mm increments, which equals 10 micrometres resolution. Don't confuse the unit of measurement with the measuring instrument — context makes it clear.
Is the Proster outside micrometer suitable for professional use?
Yes. At £126.13 for a single tool with ±0.01mm accuracy and carbide measuring faces, the Proster micrometer meets the requirements for most professional workshop applications. For UKAS-traceable inspection work, you'll want annual calibration certification, but the tool itself is capable of professional-grade measurements across its 0-25mm range.
How often should I calibrate my micrometer?
Zero-check before every measurement session using the supplied calibration standard. For professional or commercial use, send for UKAS-accredited calibration annually — typically costing £15-30 per instrument. Hobbyist users can extend this to every 2 years if the tool passes regular zero checks and shows no visible wear on the measuring faces.
Do I need a full 6-piece set or will a single micrometer do?
Depends on your work. A single 0-25mm micrometer handles most small component measurements — sheet metal, pins, small shafts. But if you're measuring anything above 25mm diameter, you'll need additional sizes. The 6-piece 0-150mm set from Proster covers virtually all common workshop tasks and works out cheaper per tool than buying individually.
What's better — a digital micrometer or analogue?
Digital micrometers offer instant readings and eliminate interpretation errors — ideal for production environments and data logging. Analogue models are more durable, need no batteries, and work reliably in oily or wet conditions. For most users, starting with an analogue micrometer builds proper technique. Add a digital model later if speed becomes critical to your workflow.
Key Takeaways
- The Proster outside micrometer at £126.13 delivers ±0.01mm accuracy with carbide measuring faces — genuine precision without the premium price tag.
- A 6-piece metric set covering 0-150mm handles virtually every workshop measurement task, from thin sheet metal to large shaft diameters.
- Learning how to read a micrometer takes minutes: sleeve reading (mm and 0.5mm) plus thimble reading (0.01mm divisions) gives your total measurement.
- Zero-check before every session using the supplied calibration standard — this single habit prevents the majority of measurement errors.
- Store with a 0.5mm gap between faces, apply light oil monthly, and never over-tighten past the ratchet stop to maintain long-term accuracy.
- For UK professional work in 2026, metric sets are standard — the Proster metric range aligns with ISO specifications and BSI measurement standards.
- Annual UKAS calibration (£15-30 per tool) is recommended for commercial inspection use; hobbyists can rely on regular zero-checks.
