What Is a Digital Micrometer?

A digital micrometer is a precision measuring instrument that displays readings on an electronic LCD screen rather than requiring you to interpret a thimble scale manually. It measures external dimensions — thickness, diameter, length — down to 0.001 mm resolution. That's a thousandth of a millimetre. Tiny.

I've been using these tools for years now, first picking one up when I needed to check material thickness for a side project. Honestly, once you've used a micrometer digital tool with a clear LCD readout, going back to squinting at vernier lines feels painful. The digital display removes guesswork entirely.

These instruments work on the same screw gauge principle as traditional micrometers — a calibrated spindle moves via a precision-ground thread with a 0.5 mm pitch. The difference? An encoder tracks spindle position electronically and converts it to a numerical display. No interpretation needed. No parallax errors.

Who Uses Digital Micrometers?

Engineers, machinists, quality control inspectors, automotive technicians, and increasingly, serious DIY enthusiasts. Anyone measuring parts where a standard ruler or even a vernier caliper won't cut it. If you're working to tolerances below 0.01 mm, you need one.

How to Read a Digital Micrometer (Step-by-Step)

Reading a digital micrometer is straightforward — the LCD shows your measurement directly in mm or inches. But understanding what's happening behind that display matters for accuracy and troubleshooting.

Basic Reading Process

Here's how to read a micrometer with a digital display:

1. Zero the tool — Close the spindle faces together gently, press the zero/origin button. The display should read 0.000 mm.
2. Open the spindle — Turn the thimble anti-clockwise until the gap exceeds your workpiece.
3. Place your workpiece — Position it between the anvil and spindle faces.
4. Close using the ratchet — Always use the ratchet stop, not the thimble directly. This applies consistent pressure (typically 5-10 N).
5. Read the display — The LCD shows your measurement. Done.

So how do you read a micrometer if the battery dies mid-job? That's where understanding the analogue scales helps. The sleeve shows whole and half millimetres. The thimble divisions show hundredths. Add them together. Well, actually — most decent digital micrometers like the Proster model retain both scales as backup, which I think is brilliant design.

How to Read Micrometer Reading: Common Mistakes

The biggest error I see? People overtightening. Use the ratchet. Always. Overtightening gives false readings and damages the spindle faces over time. Second mistake: not zeroing before each measurement session. Temperature changes alone can shift your zero point.

Proster Micrometer Digital: Specifications & Features

The Proster Micrometer Measuring Tool sits at £126.13 — a price point that genuinely surprised me when I first looked at what you get for the money. It's positioned for tradespeople and serious hobbyists who need reliable precision without spending £150+ on a Mitutoyo., a favourite among Britain’s tradespeople

Worth the spend? For under thirty quid, you're getting ±0.002 mm accuracy. That's spot on for most workshop applications. My mate who does CNC work uses one as his quick-check tool alongside his calibrated Mitutoyo, and he reckons it holds up well for day-to-day use.

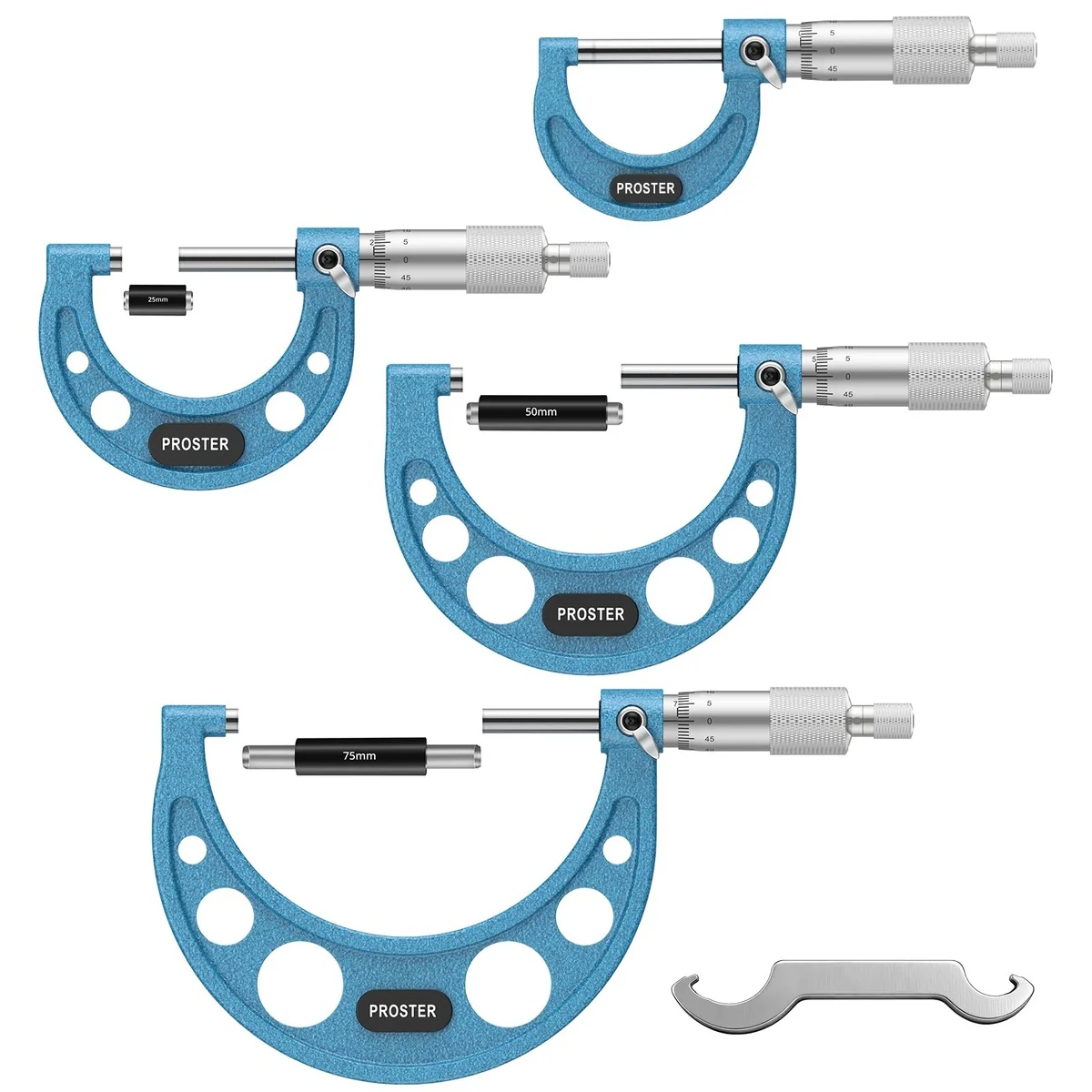

If you need a broader range, Proster also offers an outside micrometer set covering 0–100 mm across multiple frames, and a micrometer set for those wanting the full kit sorted from day one.

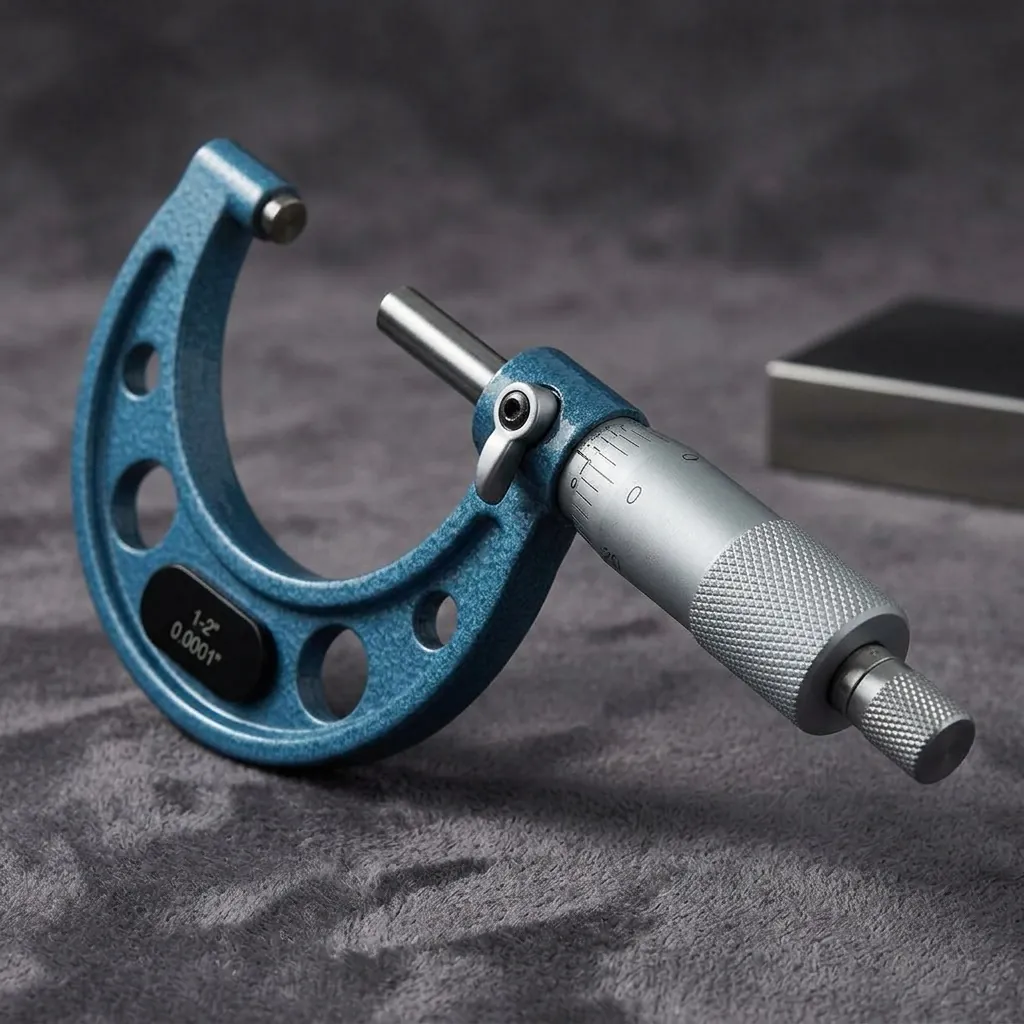

Digital vs Analogue Micrometers: Which Should You Choose?

Digital micrometers win on speed and ease of reading. Analogue wins on battery independence and — some argue — feel. Here's the honest comparison:

Look, if you're training apprentices or doing quick QC checks on a production line, digital is the obvious choice. No debate. But I'd still recommend everyone learns how to read a micrometer the old-fashioned way — it builds understanding of what the tool is actually doing mechanically.

For workshop environments where coolant or metal dust is present, check that any digital model you buy has adequate sealing. The British Standards Institution (BSI) references IP protection ratings that indicate dust and moisture resistance — IP65 or above is ideal for harsh shop floors.

Digital Micrometers & the Sheffield Precision Heritage

Sheffield has been synonymous with precision engineering in the UK for over a century. Digital Micrometers Ltd, based in Sheffield, represents that tradition — they've been supplying calibrated measurement tools to British industry for decades. The city's heritage in steel and toolmaking created a natural home for micrometer manufacturing and calibration services.

Why does this matter to you as a buyer? Calibration traceability. Any micrometer digital tool used in professional quality control should be calibrated to UKAS standards. Sheffield-based calibration houses offer this service, typically costing £15–£40 per instrument with a certificate traceable to national standards.

Calibration Requirements

The UK Government's trading standards framework doesn't mandate calibration frequency for most workshop applications, but ISO 9001 quality systems typically require annual recalibration. If you're using your digital micrometer for anything that feeds into certified quality records, get it calibrated yearly. Simple as that.

For home workshop use and general DIY? Checking against gauge blocks every few months is sufficient. The Proster micrometer ships with a setting standard for zero verification.

MM to Micrometer Conversions Explained

This trips people up constantly. A "micrometer" is both a tool AND a unit of measurement. The unit — also called a micron (μm) — equals one thousandth of a millimetre., popular across England

So when someone asks about mm to micrometer conversion, they're usually asking about the unit, not the tool. Here's the quick reference:

• 1 mm to micrometer: 1 mm = 1,000 μm
• 1 micrometer to mm: 1 μm = 0.001 mm
• 0.01 mm = 10 μm (typical analogue micrometer resolution)
• 0.001 mm = 1 μm (typical digital micrometer resolution)

When your micrometer digital display reads 12.345 mm, that last digit represents 5 micrometres (5 μm). That's roughly one-tenth the thickness of a human hair. Puts it in perspective, doesn't it?

Practical Conversion Context

In engineering drawings, tolerances might be specified as ±5 μm (±0.005 mm). Your Proster digital micrometer with ±0.002 mm accuracy can verify these tolerances reliably. For tighter work — say ±1 μm — you'd need laboratory-grade equipment costing thousands.

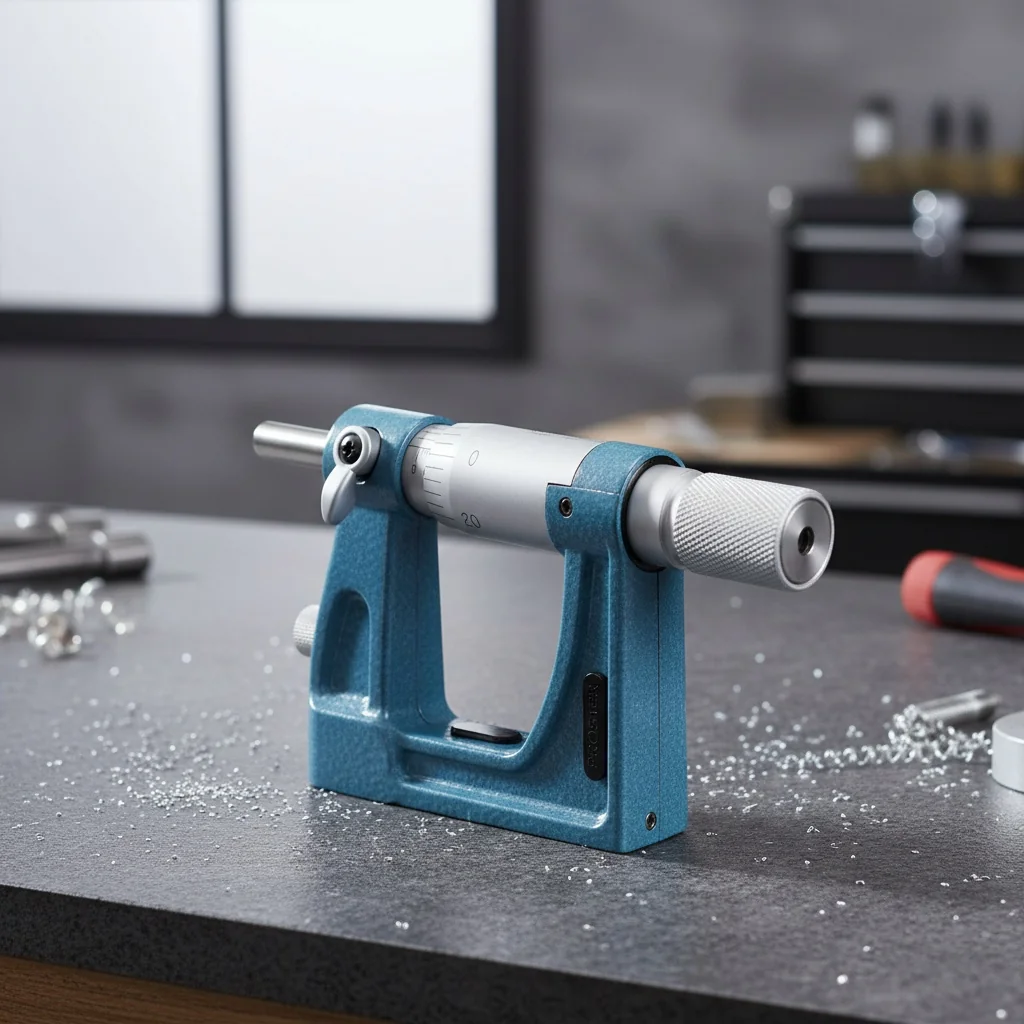

Buying Guide: Choosing a Micrometer Digital Tool in 2026

The market's flooded with options this spring. From £15 no-name imports to £500 Mitutoyo flagships. Here's what actually matters when you're spending your own money:

Resolution vs Accuracy — Know the Difference

A tool displaying 0.001 mm resolution doesn't mean it's accurate to 0.001 mm. Resolution is what the display shows. Accuracy is how close that reading is to the true value. The Proster at £126.13 displays to 0.001 mm but is accurate to ±0.002 mm. That's honest specification — and decent bang for your buck.

What to Check Before Buying

• Measuring range — 0–25 mm covers most needs. Larger ranges need separate frames.
• Carbide measuring faces — Last far longer than hardened steel. Essential if you're measuring abrasive materials.
• Ratchet stop — Non-negotiable. Without it, you can't get repeatable readings.
• Data output — SPC/USB output matters for production environments. Less critical for workshop use.
• Storage case — Protects the tool and maintains calibration between uses.

I'd recommend checking Which? consumer guides for independent testing methodology if you're comparing multiple brands. Their approach to measurement tool testing is thorough.

Price Brackets Explained

Under £30 (e.g., Proster at £126.13): Excellent for hobbyists, students, and general workshop checks. Perfectly adequate accuracy for most tasks.

£30–£80: Mid-range tools with better build quality, sometimes IP65 protection, and longer battery life.

£80–£200: Professional-grade. Expect SPC output, superior repeatability, and UKAS calibration certificates included., with availability in Scotland

£200+: Laboratory and production-line instruments. Sub-micron accuracy. Overkill for 95% of users.

That said, if you're just starting out or need a reliable backup tool, the Proster range offers genuine value. I've seen tools at twice the price that don't perform noticeably better for typical workshop measurements.

Key Takeaways

• A micrometer digital tool eliminates reading errors — the LCD displays measurements directly to 0.001 mm, removing the interpretation skill barrier of analogue models.
• The Proster Micrometer Measuring Tool at £126.13 delivers ±0.002 mm accuracy — genuine precision at a price point accessible to hobbyists and tradespeople alike.
• Always use the ratchet stop — consistent measuring force is the single biggest factor in getting repeatable, accurate readings from any micrometer.
• 1 mm equals 1,000 micrometres — understanding this conversion is essential for interpreting engineering tolerances and specifications correctly.
• Calibrate annually for professional use — UKAS-traceable calibration costs £15–£40 and ensures your measurements remain reliable and auditable.
• Digital beats analogue for speed and training — new users can take accurate measurements immediately without learning how to read micrometer thimble scales.
• Sheffield remains the UK's precision measurement hub — Digital Micrometers Ltd and other specialists offer calibration, repair, and expert guidance from this historic engineering city.
